Floor scales & pallet scales
For heavy weighing material
Floor scales and pallet scales from MeWa with high overload protection are used in warehouses and logistics, in incoming and outgoing goods, in medicine and in the meat industry. Picking, weighing quantities, totalizing, counting, formulating - for every requirement you will find the right model in a suitable design: stainless steel, tear plate, built-in scale or scale for driving over. We offer suitable designs that take load peaks into account when lowering the goods to be weighed and are durable even under harsh conditions.
Products in the range Floor scale & Pallet scale
Pallet scale/floor scale - MeWa PW
Calibratable and mobile scale with two transport wheels and handle. Maximum load: 600, 1500 or 3000 kg.
Maximum load: 3 to.
-
Product details
- Pallet scale in three finishes: painted steel, hot-dip galvanized steel, stainless steel
- Load capacity of steel structure according to DIN 1925 standard load 2
- Smooth surface for all types of scales
- Overload protection included
- Transport rollers in the longitudinal bars and in the handle
- Function tested with 5 m connection cable
- Cable box: protection type IP 54 for steel painted version
- Cable box: protection type IP 66 for steel hot-dip galvanized and stainless steel versions
- With stainless steel load cells IP 67 for steel painted version
- With stainless steel load cells IP 68 for hot-dip galvanized steel and stainless steel versions
- All load cells can be used for 2 x 3000e (multirange) legal for trade
- Overall height only 85 mm
- Standard leg width is 120 mm
Options/Pallet scale MeWa PW:
- ATEX version for intrinsically safe circuits
- IP66 cable box for painted steel version
- IP68/69k load cells for painted steel version
- Leg widening up to 140 mm
- Insertion plate
- Height adjustable load feet
- Floor stand
- Measuring cable separation
-
Technical data
- Load capacity / kg: 35.00
Maximum load / kg: 600
Digit increment / g: 200
Dimensions L x W x H / mm: 1.265 x 835 x 85 - Load capacity / kg: 35.00
Maximum load / kg: 1.500
Digit increment / g: 500
Dimensions L x W x H / mm: 1.265 x 835 x 85 - Load capacity / kg: 35.00
Maximum load / kg: 3.000
Digit increment / g: 1.000
Dimensions L x W x H / mm: 1.265 x 835 x 85
- Load capacity / kg: 35.00
-
Displays and weighing indicators
You will find our large selection of displays and weighing indicators on the Software & Weighing Accessories page.
If you have any questions about compatibility and intended use, we will be happy to advise you.
Floor scale - MeWa BW Comfort
Floor scale with unscrewable load plate, easy to maintain and clean.
Maximum load: 3 to.
-
Product details
- Steel floor scale with unscrewable load plate.
- Versions: Painted steel, hot-dip galvanized steel, stainless steel
- Load capacity of steel construction according to DIN 1925 standard load 2
- Smooth surface for all versions
- Function tested with 8 m connection cable
- Cable box: Protection class IP 54 for painted steel version
- Cable box: protection class IP 66 for hot-dip galvanized steel and stainless steel versions
- With stainless steel load cells IP 67 for steel painted version
- With stainless steel load cells IP 68/69k for hot-dip galvanized steel and stainless steel versions
- All load cells can be used for 2 x 3000e (multirange) legal for trade
- Overall height only 90 mm
Options/Floor scale MeWa Comfort:- Base frame: Steel hot-dip galvanized, stainless steel
- Ramps: steel painted, steel hot-dip galvanized, stainless steel
- Cable box IP 66 for version steel painted
stainless steel load cells IP 68/69k for versions steel painted - floor stand: height 1150 mm in steel painted or stainless steel
- Stand base: 400 x 400 mm in steel painted or stainless steel
- ATEX version for intrinsically safe circuits
- Special painting in RAL color
- Measuring cable separation
- Mechanical overload protection
- Bridge plate with teardrop structure
- Stainless steel bridge plate for painted steel and hot-dip galvanized steel versions
- Height adjustable load feet
-
Technical data
- Dimensions W x D / mm: 800 x 800
load capacity / kg: 4.500
Weighing range / kg: 300/600/1.500 - Dimensions W x D / mm: 1.000 x 800
load capacity / kg: 4.500
Weighing range / kg: 300/600/1,500 - Dimensions W x D / mm: 1.000 x 1.000
load capacity / kg: 4.500
Weighing range / kg: 600/1,500/3,000 - Dimensions W x D / mm: 1.250 x 1.000
load capacity / kg: 4.500
Weighing range / kg: 600/1,500/3,000 - Dimensions W x D / mm: 1.250 x 1.2500
load capacity / kg: 4.500
Weighing range / kg: 600/1,500/3,000 - Dimensions W x D / mm: 1.500 x 1.250
load capacity / kg: 4.500
Weighing range / kg: 600/1,500/3,000 - Dimensions W x D / mm: 1.500 x 1.500
load capacity / kg: 4.500
Weighing range / kg: 600/1,500/3,000 - Dimensions W x D / mm: 2.000 x 1.500
load capacity / kg: 4.500
Weighing range / kg: 600/1,500/3,000
- Dimensions W x D / mm: 800 x 800
-
Displays and weighing indicators
You will find our large selection of displays and weighing indicators on the Software & Weighing Accessories page.
If you have any questions about compatibility and intended use, we will be happy to advise you.

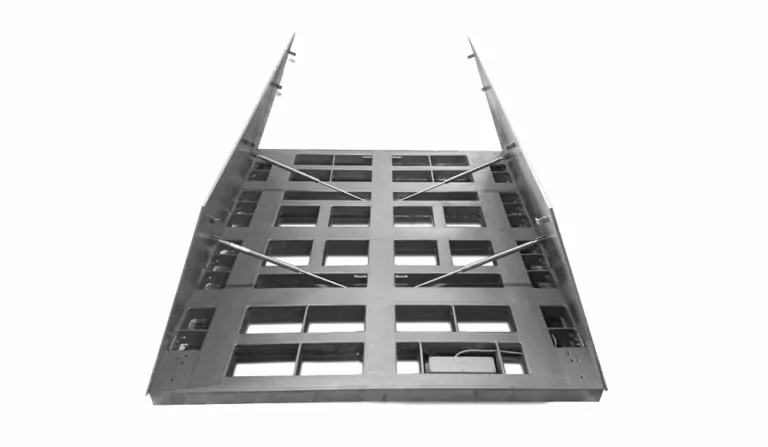

Floor scale stainless steel - MeWa BW Extra
Stainless steel floor scale with hinged load plate for use in food processing plants.
Maximum load: 1.5 to.
-
Product details
- With hinged load plate
- Stainless steel design
- Load capacity of steel construction according to DIN 1925 standard load 2
- Smooth surface on all versions
- Function tested with 8 m connection cable
- Equipped with stainless steel gas pressure dampers filled with bio-oil
- Cable box: protection class IP 66
- With stainless steel load cells IP 68/69k
- All load cells for 2 x 3000e (multirange)
suitable for legal for trade use - Overall height only 90 mm
Options:- Foundation frame: painted steel, hot-dip galvanized steel, stainless steel
- Ramps made of stainless steel
- Finishes: Steel painted and steel hot-dip galvanized
- Special painting in RAL color
- ATEX version for intrinsically safe circuits
- Measuring cable separation
Mechanical - overload protection
Cable box IP 65 - Height adjustable load feet
- Floor stand, height 1150 mm
- Tripod base: 400 x 400 mm
-
Technical data
- Dimensions W x H x D / mm: 1.000 x 90 x 800
Load capacity / kg: 3.500
maximum load / kg: 300
Digit increment / g: 100 - Dimensions W x H x D / mm: 1.000 x 90 x 800
load capacity / kg: 3.500
maximum load / kg: 600
Digit increment / g: 200 - Dimensions W x H x D / mm: 1.500 x 90 x 1.250
load capacity / kg: 3.500
Maximum load / kg: 1.500
Digit increment / g: 500 - Dimensions W x H x D / mm: 1.500 x 90 x 1.500
Load capacity / kg: 3.500
maximum load / kg: 1.500
Digit increment / g: 500 - Dimensions W x H x D / mm: 2.000 x 90 x 1.500
Load capacity / kg: 3.500
maximum load / kg: 1.500
Digit step / g: 500
- Dimensions W x H x D / mm: 1.000 x 90 x 800
-
Displays and weighing indicators
You will find our large selection of displays and weighing indicators on the Software & Weighing Accessories page.
If you have any questions about compatibility and intended use, we will be happy to advise you.
Floor scale - MeWa BW Classic Plus
The heavy-duty legal-for-trade scale can be driven over with fork-lift trucks or pallet trucks, for example.
Maximum load: 10 to.
-
Product details
- Floor scale with welded load plate, t =15 mm
- Height from 80 mm
- Versions: Painted steel, hot-dip galvanized steel, stainless steel
- Load capacity of steel construction according to DIN 1925 standard load 3
- Smooth surface for all designs
- Function tested with 8 m connection cable
- Cable box: protection class IP 66
- With stainless steel load cells IP 67 for painted steel version
- With stainless steel load cells IP 68/69k for versions steel hot-dip galvanized and stainless steel
- All load cells can be used for 2x3000e (multi-range) legal for trade
Options/Floor scale MeWa BW Classic Plus:- Foundation frame: steel painted, steel hot-dip galvanized, stainless steel
- Ramp: steel painted, steel hot-dip galvanized, stainless steel
- Load cells IP 68/69k for steel painted version
- floor stand: height 1.150 mm in steel painted or stainless steel
- Stand base: 400 x 400 mm in steel painted or stainless steel
- ATEX version for intrinsically safe circuits
- Special painting in RAL color
- Measuring cable separation
- Mechanical overload protection
- Height adjustable load feet
-
Technical data
- Load capacity / kg: 6.000
Weighing range / kg: 1.500 / 3.000 / 6.000
dimensions W x D / mm: 800 x 800 - Load capacity / kg: 6.000
Weighing range / kg: 1.500 / 3.000 / 6.000
Dimensions W x D / mm: 1.000 x 1.000 - Load capacity / kg: 6.000
Weighing range / kg: 1.500 / 3.000 / 6.000
Dimensions W x D / mm: 1.250 x 1.000 - Load capacity / kg: 6.000
Weighing range / kg: 1.500 / 3.000 / 6.000
dimensions W x D / mm: 1.250 x 1.250 - Load capacity / kg: 6.000
Weighing range / kg: 1.500 / 3.000 / 6.000
Dimensions W x D / mm: 1.500 x 1.250 - Load capacity / kg: 6.000
Weighing range / kg: 1.500 / 3.000 / 6.000
Dimensions W x D / mm: 1.500 x 1.500 - Load capacity / kg: 6.000
Weighing range / kg: 1.500 / 3.000 / 6.000
Dimensions W x D / mm: 2.000 x 1.500 - Load capacity / kg: 12.500
Weighing range / kg: 6.000 / 10.000
Dimensions W x D / mm: 2,100 x 1,500
- Load capacity / kg: 6.000
-
Displays and weighing indicators
You will find our large selection of displays and weighing indicators on the Software & Weighing Accessories page.
If you have any questions about compatibility and intended use, we will be happy to advise you.
Drive-through scale/floor scale - MeWa DFW Comfort
Drive-through scale with particularly low entry height approx. 45 mm, including a drive-on ramp.
Maximum load: 1.5 to.
-
Product details
- Load-bearing capacity of the steel structure according to DIN 1925 standard load 2
- Finish: Painted steel, hot-dip galvanized steel, stainless steel
- Smooth surface for all designs
- Surface of the up and down ramps is made of bulb plate as standard
- Standard ramp length is 295 mm
- Function tested with 8 m connection cable
- Cable box: IP 54 protection for painted steel version
- Cable box: IP 66 protection for galvanized steel and stainless steel versions
- With stainless steel load cells IP 67 for steel painted version
- With stainless steel load cells IP 68/69k for galvanized steel and stainless steel versions
- All load cells can be calibrated for 2 x 3,000 e (multiple range)
- Including a drive-on ramp
- Drive-in height is 41 mm
Options:
- Second ramp: painted steel, hot-dip galvanized steel, stainless steel
- Cable box IP 65 for steel painted version
- Stainless steel load cells IP 68/69k for steel painted version
- Floor stand: height 1.150 mm in steel painted or stainless steel
- Stand base: 400 x 400 mm in painted steel or stainless steel
- Special painting in RAL color
- ATEX version for intrinsically safe circuits
- Height adjustable load feet
- Measuring cable separation
- Mechanical overload protection
-
Technical data
- Dimensions W x H x D / mm: 900 x 700 x 85
Load capacity / kg: 1.200
Weighing range / kg: 300 / 600
weight / kg: 90 - Dimensions W x H x D / mm: 1.000 x 800 x 85
load capacity / kg: 1.200
Weighing range / kg: 300 / 600
Weight / kg: 140 - Dimensions W x H x D / mm: 1.000 x 1.000 x 85
load capacity / kg: 3.000
Weighing range / kg: 300 / 600 / 1.500
weight / kg: 170 - Dimensions W x H x D / mm: 1.250 x 1.100 x 85
Load capacity / kg: 3.000
Weighing range / kg: 300 / 600 / 1.500
weight / kg: 210 - Dimensions W x H x D / mm: 1.250 x 1.250 x 85
Load capacity / kg: 3.000
Weighing range / kg: 300 / 600 / 1.500
weight / kg: 230 - Dimensions W x H x D / mm: 1.600 x 1.250 x 85
Load capacity / kg: 3.000
Weighing range / kg: 300 / 600 / 1.500
Weight / kg: 270
- Dimensions W x H x D / mm: 900 x 700 x 85
-
Displays and weighing indicators
You will find our large selection of displays and weighing indicators on the Software & Weighing Accessories page.
If you have any questions about compatibility and intended use, we will be happy to advise you.
Soehnle drive-through scale 7764.20 with 2 integrated ramps
- Robust steel construction
- especially flat
- Quick to put into operation
- With low drive-on height and integrated drive-on ramps
Drive-in scale/floor scale - with lifting device
Calibratable truck scale completely made of stainless steel with lifting system, for overhead installation.
Maximum load: 1.5 to.
-
Product details
- Load-bearing capacity of the steel structure according to DIN 1925, standard load 2
- Function tested with 8 m connection cable
- Standard with stainless steel load cells IP 68/69k
- With 2 stainless steel gas pressure dampers - filled with bio-oil
- Including one drive-on ramp
- Drive-in height: 41 mm
- Individual dimensions and equipment on request
- Verifiable
-
Technical data
- Dimensions W x H x D / mm: 900 x 700 x 85
Load capacity / kg: 1.200
Weighing range / kg: 300 / 600
weight / kg: 90 - Dimensions W x H x D / mm: 1.000 x 800 x 85
load capacity / kg: 1.200
Weighing capacity /a kg: 300 / 600
Weight / kg: 140 - Dimensions W x H x D / mm: 1.000 x 1.000 x 85
load capacity / kg: 3.000
Weighing range / kg: 300 / 600 / 1.500
weight / kg: 170 - Dimensions W x H x D / mm: 1.250 x 1.100 x 85
Load capacity / kg: 3.000
Weighing range / kg: 300 / 600 / 1.500
weight / kg: 210 - Dimensions W x H x D / mm: 1.250 x 1.250 x 85
Load capacity / kg: 3.000
Weighing range / kg: 300 / 600 / 1.500
weight / kg: 230 - Dimensions W x H x D / mm: 1.600 x 1.250 x 85
Load capacity / kg: 3.000
Weighing range / kg: 300 / 600 / 1.500
Weight / kg: 270
- Dimensions W x H x D / mm: 900 x 700 x 85
-
Displays and weighing indicators
You will find our large selection of displays and weighing indicators on the Software & Weighing Accessories page.
If you have any questions about compatibility and intended use, we will be happy to advise you.
Further information
-
Further informationThe characteristic features of pallet scale
Typical for these industrial scales is their characteristic design of the weighing bridge in the form of a large "U". Accordingly, it is designed in such a way that the weighing beams of the scale fit exactly under a pallet or pallet cage of the corresponding format. Consequently, for example, the size of the weighbridge of the Euro pallet scale is an exact fit for Euro pallets. The great advantage of this specific shape: Goods that are delivered or stored on pallets can thus be weighed on the pallet scale. This is because the full pallet can be placed directly on the weighing bridge of the pallet scale by forklift truck or pallet truck. This is not possible when using a conventional floor scale.
As standard, MeWa pallet scales are equipped with a handle on the upper crossbeam and with transport rollers on the undersides of the longitudinal beams or weighing beams. This makes it easy to transport the scales to the place where they are to be weighed.A whole range of pallet scale models is manufactured in the company's own scale manufacturing plant in Germany. This allows for numerous options in terms of construction, material, dimensions, surface finish, features, accessories and many more variables. For more information, please refer to the section Additional Options
-
The benefit of the pallet scale compared to other scales
Weighing with a pallet scale eliminates any effort that would be involved in loading and unloading the platform of a conventional floor scale. This makes the weighing process much faster than with other platform scales. Using a pallet scale saves the user valuable time and some effort. This results in significantly lower costs for weighing. In addition, the pallet scale is suitable for transport within the factory premises. Thanks to the handle and rollers on the weighing beam, it can be moved effortlessly from A to B by one person.
-
Areas of application of the pallet scale
Our pallet scales are calibratable or approved. They are suitable for use in production in commercial and industrial enterprises as well as in workshops and companies with a high turnover of goods. Shipping, warehousing and logistics are therefore the main areas of application.
Whether at goods receipt or before dispatch - wherever goods are circulated on pallets or in pallet cages, pallet scales provide valuable services in determining and checking the weight.
Our pallet scale customers include freight forwarders, wholesale markets, metal construction companies, DIY stores, paper manufacturers, packing companies, inland and seaports, grain processing companies, warehousing companies, chemical industry companies, agricultural companies, retailers and wholesalers, and many others. -
The weighing process with the pallet scale
Pallets or pallet cages are inserted one after the other into the open side of the U pallet scale using a lift truck or forklift. The forks of the lift truck or forklift can remain under the pallet during the weighing process and do not have to be extended. Simply lowering the pallet onto the weighing beams of the scale is sufficient to determine and read the weighing result.
-
The versatile functions of the pallet scale
Weight control: At goods receipt, pallet scales - often directly at the ramp - are used to check whether the delivered goods also have the expected weight.
Picking: For many customer and production orders, the weight of the shipping unit must be determined and documented before shipment. Here, too, the pallet scale comes into play.
Piece counting: When goods are shipped in unit quantities, the pallet scale serves as a convenient counting system in conjunction with a counting scale. These counting systems are usually also used for inventories. -
Material properties of the pallet scale according to requirements
Our bestseller among the pallet scales is the so-called Euro-U made of robust, high-quality steel with fireproof industrial paint. By the way, the entire RAL color palette is available for the paint finish. If the pallet scale has to comply with the hygiene regulations of the food industry, stainless steel is used as the basic material. In terms of surface finishing, powder coating and hot-dip galvanizing are also possible in addition to painting. For use in the chemical industry, we offer pallet scales made of stainless steel with an electropolished surface.
-
The load cells in the pallet scale
The pallet scale in painted steel is supplied as standard with stainless steel load cells with IP67 protection. These are therefore dust-tight and protected against temporary immersion in water. In the material variants hot-dip galvanized steel and stainless steel, our pallet scales contain stainless steel load cells with protection class IP68. They are thus dust-tight and protected against permanent immersion. This means that they can be used in damp or wet environments over a longer period of time.
All load cells can be used for 2 x 3,000 e (also for multi-range) and are therefore legal for trade. On request, we can also supply the pallet scales calibrated. -
Load capacity, maximum load or weighing range and numerical increment of the pallet scale
Each MeWa pallet scale has a maximum load capacity of 3,500 kilograms. The load capacity of the steel construction corresponds to DIN 1925 according to standard load 2. To ensure that the scales are not damaged if they are accidentally overloaded, they are equipped with an overload protection.
For weighing range or maximum load and numerical increment and readability (the scales are legal for trade) you can choose between the following variants:- Weighing range 300 kg: Digit increment 100 g
- Weighing range 600 kg: Digit increment 200 g
- Weighing range 1,500 kg: Digit increment 500 g
- Weighing range 3,000kg: Digit increment 1,000 g
Dimensions and tare weight of the Euro pallet scale:- 1,265 mm long
- 835 millimeters wide
- 90 millimeters high
What the platform is in a conventional floor scale, the pallet scale is made up of the legs - or bars. They are each 120 millimeters wide. The overall height of the scale is only 85 millimeters.
Optionally, we can also produce individual dimensions and a leg width of 140 millimeters.
The tare weight of the Euro pallet scale in the painted steel version is 44 kilograms. -
Possible additional options when choosing a pallet scale
Production of MeWa pallet scales in the company's own plant allows a series of additional options. MeWa brand scales are available with the following accessories:
- ATEX version for intrinsically safe circuits.
- IP66 cable box for painted steel version
- IP68/69k load cells for the painted steel version
- Wider legs: 140 mm (instead of 120 mm)
- Insertion plate
- Height adjustable load feet
- Stand for the indicator
- Measuring cable separation
- Special sizes on customer request
- Printer
- Balance calibrated
-
Commissioning and use of the pallet scale
Our pallet scales are functionally tested with a 5-meter connection cable. The scales are suitable for operation with any indicator. A wide range of indicators and evaluators - verifiable or calibrated - with a variety of helpful functions are offered here on our website.
For commissioning, the connection cable included in the scope of delivery is connected to the electric circuit. The measuring cable is connected to the indicator. The indicator runs through the startup program and as soon as 0.0 g appears in the display, weighing can be started.
Safe use of the pallet scale is ensured by the extra protected cable box. If the platform or the weighing beam is made of painted steel, the cable box is IP54 (protection against dust deposits and water spray), if it is made of hot-dip galvanized steel or stainless steel, it is IP66 (protection against dust and strong water jets).
Further information on commissioning can be found in the detailed operating instructions included in the scope of delivery. -
Service: Maintenance and repair of the pallet scale
The surfaces of the pallet scales, whether painted, hot-dip galvanized or made of stainless steel, are extremely robust at the core and withstand high stress, even in harsh environments, for a long time. The same applies to the weighing electronics and load cells. We provide a two-year parts warranty on material and function for each product type.
For any repair and maintenance work, we offer quick assistance and a comprehensive scale service in our workshop. On request, our service technicians will come on site to the scale location.
-
Calibration and DAkkS calibration of the pallet scale
All MeWa pallet scales are calibratable. On request, we can also deliver them as already calibrated industrial scales with manufacturer's initial verification, i.e. ready calibrated.
For already purchased pallet scales, recalibration and DAkkS-compliant calibration can also be ordered from MeWa. Of course, we also observe the legally compliant, periodic intervals and, if desired, take over the corresponding calibration and calibration management. -
Around the purchase of the pallet scale
Before deciding to buy an industrial scale, MeWa always holds a detailed consultation on all details of weighing technology and ultimately also on the price of a pallet scale. We are happy to provide all decision-making aids for the purchase of pallet scales.
An investment in a pallet scale should be preceded by considerations regarding the external framework conditions and operating processes. Will the scale be used in a hall or will it be located outside? Does it need to be protected from dust, dirt and moisture? What conditions must be taken into account with regard to the display unit? The size of the pallets or skeleton containers to be weighed (Euro pallets or special size) is also decisive. What kind of goods are to be weighed and are there any special hygiene regulations? This will later determine which material and which surface technology is required. If goods are weighed which are brought into circulation, the calibration obligation applies and the pallet scale must be calibratable or calibrated.
In any case, MeWa holds a detailed consultation with our customers in advance to discuss the conditions. All details are clarified: prices in € (net or plus VAT), type and price of delivery incl. or excl. costs for shipping or delivery (in and outside Germany), but also possible payment methods - all topics that are important for the purchase. You can also find further information in our terms and conditions. -
Buy or rent pallet scale?
If industrial scales are to be used for a limited period of time or if a longer repair time has to be bridged, MeWa offers the possibility to rent a scale. This also applies to our pallet scales, which are available for rent in a wide range - also ready calibrated. The € price for the rental varies depending on the duration and equipment of the items. We will be pleased to submit individual offers.
-
Answers to questions about MeWa pallet scales
Should any questions arise before, during or after the use of a pallet scale from our company, our team is always available with answers and assistance. Wherever our customers need support, we are ready and looking forward to your call and e-mail.
